High-Precision Medical Plastic Components with Cycoloy C1200HF (PC+ABS) & 3-Plate Mold Technology

A 3-Plate Mold is a type of injection mold design that consists of three main plates:

1. Fixed Plate (C Plate) – Mounted on the stationary side of the injection molding machine, containing the cooling system and cavity.
2. Movable Plate (A Plate) – Attached to the moving side of the machine, responsible for part ejection.
3. Middle Plate (B Plate) – Positioned between the fixed and movable plates, primarily used for runner system separation.

This mold design differs from a 2-Plate Mold by having an additional split between the runner and part, allowing the use of pin-point gates and enabling automatic runner separation during the molding process.

Key Features of a 3-Plate Mold:

✅ Supports pin-point gates, ideal for precision medical and electronic components.
✅ Automatic runner separation, eliminating the need for manual gate trimming.
✅ Better product appearance, as pin-point gates leave minimal gate marks.
✅ Flexible gate placement, making it suitable for multi-cavity molds and improving material efficiency.

Applications of 3-Plate Molds:

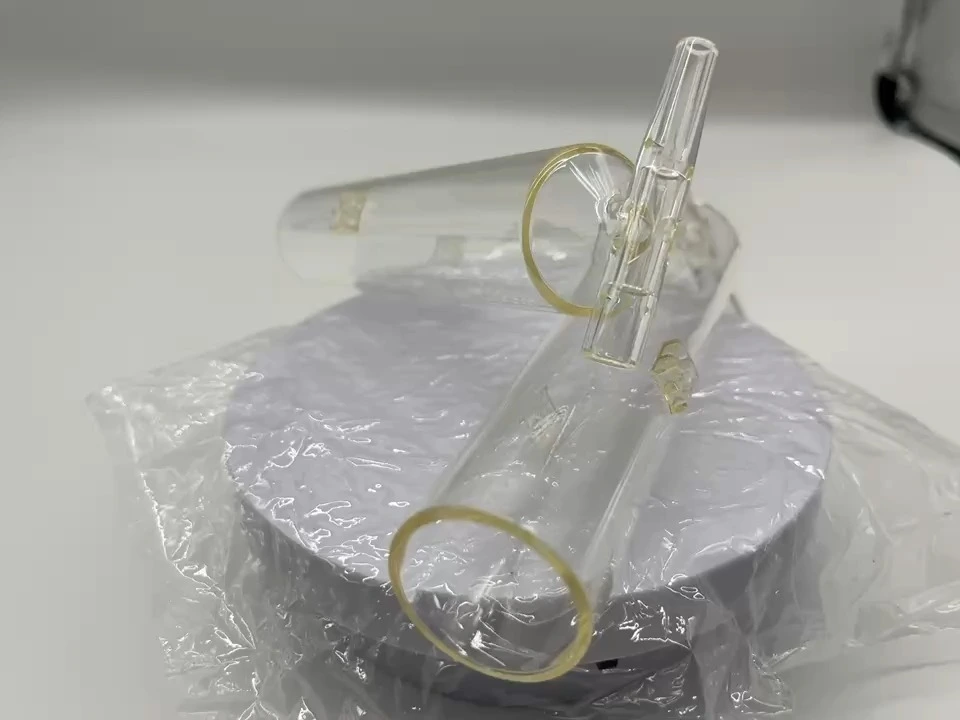

🔹 Medical plastic components – Surgical device handles, connectors, and casings
🔹 Electronics – Precision connectors, small plastic housings
🔹 Automotive parts – Dashboard buttons, small functional components
🔹 High-end consumer products – Optical lenses, cosmetic packaging

Due to its high precision, automation, and efficiency, 3-Plate Molds are widely used in medical, electronics, and high-end plastic product manufacturing.
